环境准备 WSL2 作为上位机 识别 Windows 11 Host 的 USB Serial Device 分别在 Windows 11 上安装 usbipd-win ， 在 WSL2 上安装 user space tools for USB/IP
1 2 3 4 5 6 7 Microsoft Windows [版本 10.0.22621.1702] (c) Microsoft Corporation。保留所有权利。 C:\Windows\System32>usbipd wsl list BUSID VID:PID DEVICE STATE 1-9 046d:c534 USB 输入设备 Not attached 1-13 04e2:1410 USB 串行设备 (COM4) Not attached
WSL2 Ubuntu-20.04 创建 /dev/ttyUSB0 1 2 3 4 5 6 7 8 9 10 11 [Thu Jun 15 19:19:44 2023] vhci_hcd vhci_hcd.0: pdev(0) rhport(0) sockfd(3) [Thu Jun 15 19:19:44 2023] vhci_hcd vhci_hcd.0: devid(65546) speed(2) speed_str(full-speed) [Thu Jun 15 19:19:44 2023] vhci_hcd vhci_hcd.0: Device attached [Thu Jun 15 19:19:45 2023] vhci_hcd: vhci_device speed not set [Thu Jun 15 19:19:45 2023] usb 1-1: new full-speed USB device number 2 using vhci_hcd [Thu Jun 15 19:19:45 2023] vhci_hcd: vhci_device speed not set [Thu Jun 15 19:19:45 2023] usb 1-1: SetAddress Request (2) to port 0 [Thu Jun 15 19:19:45 2023] usb 1-1: New USB device found, idVendor=04e2, idProduct=1410, bcdDevice= 0.03 [Thu Jun 15 19:19:45 2023] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [Thu Jun 15 19:19:45 2023] xr_serial 1-1:1.0: xr_serial converter detected [Thu Jun 15 19:19:45 2023] usb 1-1: xr_serial converter now attached to ttyUSB0
Recovery 模式应该连接哪个 Type-C （USB SERIAL) 接口 HiKey970 有两个 Type-C 接口，而且当板子被设置为 Recovery 模式时，两个接口均会被识别为“串口”。在左手边的 (J3101) 是用来访问 Debug UART 的，而在 HDMI 和 USB 中间的那个(J1801)是在 Recovery 模式下使用的。而且这两个接口是两个不同厂家提供的芯片，使用完全不同的内核驱动模块
前者(J3101)：Bus 001 Device 003: ID 04e2:1410 Exar Corp. XR21V1410 USB-UART IC
后者(J1801)：Bus 001 Device 002: ID 12d1:3609 Huawei Technologies Co., Ltd. USB SER
Build rootfs.img and boot.img boot.img boot.img 主要提供 bootloader, 所以它可以只包含 grub.efi , Hikey970 使用的 boot.img 是 64M 大小
rootfs.img rootfs.img 就是整个系统了(根文件系统)，内核可执行文件(Image)和设备树二进制文件(.dtb) 都包含在它的 boot 目录里，Hikey970 使用的 rootfs.img 原始大小是 4.0GB, 但经过 android-tools 工具包里的 img2simg 处理后只有 716M
image 与 Raw image 大小对比 1 2 -rw-r--r-- 1 luc luc 4.0G 11月26日 06:48 rootfs.img -rw-r--r-- 1 luc luc 716M 11月18日 21:47 rootfs.sparse.img
debootstrap
/usr/sbin/qemu-debootstrap/usr/sbin/debootstrap
是两个 Shell 脚本 , 主要就是通过下载相应平台的 binaries，通过 chroot 来制作根文件系统
fastboot fastboot 是用来从 Host 向开发板烧写固件和镜像的常用工具之一，在 Arch Linux 上它可以通过以下命令安装
fastboot 1 yay -S android-sdk-platform-tools
fastboot 常用命令 bootloader 获取各种信息，如 version, partition ID, 可以用来判断设备是否已与 Host 正常连接就绪 1 2 3 4 5 fastboot flash ptable 64gtoendprm_ptable.img fastboot flash xloader sec_xloader.img fastboot flash fastboot l-loader.bin fastboot flash fip fip.bin fastboot flash boot boot2grub.uefi.img
Sparse 镜像，指定传输块大小，每 8M 传输 1 fastboot -S 8M flash system rootfs.sparse.img

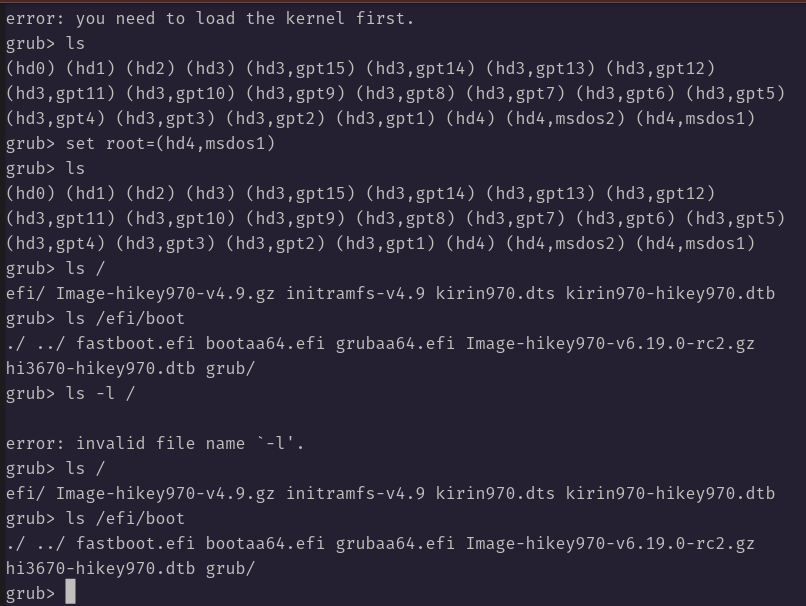

启动 Bootloader mount -o loop boot2grub.uefi.img link 1 2 3 4 ➜ /mnt ls -lh /mnt/EFI/BOOT 总计 881K -rwxr-xr-x 1 root root 29K 2018年 2月14日 fastboot.efi -rwxr-xr-x 1 root root 852K 2018年 2月14日 grubaa64.efi
/boot 目录 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 hikey970% ls -lhR /boot /boot: total 23M drwxr-xr-x 3 root root 4.0K Jun 12 2018 EFI -rw-r--r-- 1 root root 23M Jun 12 2018 Image drwxr-xr-x 2 root root 4.0K Jun 12 2018 grub -rw-r--r-- 1 root root 68K Jun 12 2018 kirin970-hikey970.dtb /boot/EFI: total 4.0K drwxr-xr-x 2 root root 4.0K Jun 12 2018 BOOT /boot/EFI/BOOT: total 32K -rw-r--r-- 1 root root 29K Jun 12 2018 fastboot.efi /boot/grub: total 4.0K -rw-r--r-- 1 root root 462 Jun 12 2018 grub.cfg
NOTE: 12V 以上接近 18V 的输入电压，否则可能出现 fastboot flash 时出现板子自己重启的怪现象
连接 WiFi
xfce4 桌面 吃灰5,6年的板子又再一次亮了
制作 rootfs, initramfs 环境是 qemu-system-aarch64 Debian 13 Trixie, 折腾了一圈，最后还是发现 Ubuntu, Debian, Arch Linux 这3个，还是 Debian 对 Aarch64 支持最好，Ubuntu 甚至还一个桌面版的 Arm 安装镜像都没有(Arm架构的安装镜像似乎都是服务器版的)。
NetworkManager vs wpasupplicant 点亮吹灰 Hikey970 用的是 hikey970-ubuntu-image , 它的 rootfs 里安装的是 NetworkManager, 当我试着将 hikey970-ubuntu-image 转换成 hikey970-debian-image 时，发现 debootstrap 会因为奇怪的包依赖问题，无法安装 NetworkManager， 而且了解到 wpasupplicant 可以完成同样的事情(连接 WiFi,让板子联网), 而且体量更小，更适合这种开发板。
所以这个 Debian 12 rootfs 网络这块使用了 wpasupplicant , iw , iproute2 , dhcpcd5 四剑客
1 2 3 4 5 6 7 8 9 10 11 12 [Unit] Description=WPA supplicant daemon (interface %i) After=sys-subsystem-net-devices-%i.device Wants=sys-subsystem-net-devices-%i.device [Service] Type=simple ExecStart=/sbin/wpa_supplicant -c /etc/wpa_supplicant/wpa_supplicant.conf -i %i Restart=on-failure [Install] WantedBy=multi-user.target
Note:
当 systemctl enable wpa_supplicant@wlan0.service 时 systemd 会自动创建一个符号链接文件到 /etc/systemd/system/wpa_supplicant@.service, 而文件里的 %i 是无线网络设备接口名，即 wlan0 .
手动创建 /etc/wpa_supplicant/wpa_supplicant.conf 1 wpa_passphrase <SSID> <PASSWORD> >/etc/wpa_supplicant/wpa_supplicant.conf
1 2 iw dev wlan0 scan | grep 'SSID:' iw dev wlan0 connect <SSID>
1 2 ip link show wlan0 ip addr wlan0
1 2 systemctl enable dhcpcd.service systemctl start dhcpcd.service
1 /sbin/ntpdate ntp.aliyun.com
kirin-drm Display Pipeline Engine driver
flowchart TB
A["kirin_drm_platform_probe()<br/>@platform_driver.probe"]
subgraph "kirin_drm_bind()@component_master_ops.bind"
B["drm_dev_alloc()"]
subgraph "kirin_drm_kms_init(drm_dev)"
C1["dev_set_drvdata(drm_dev->dev_private)"]
C2["drm_mode_config_init(drm_dev)"]
C3["kirin_drm_mode_config_init(drm_dev)<br/>kirin-specific mode config"]
C31["dss_drm_init()@kirin_dc_ops.init"]
C4["component_bind_all(dev, drm_dev)"]
C5["drm_vblank_init(drm_dev, num_crtc(2))"]
C6["drm_mode_config_reset(drm_dev)"]
C7["kirin_drm_fbdev_init(drm_dev)"]
C8["drm_kms_helper_poll_init(drm_dev)"]
C9["drm_helper_hpd_irq_event()"]
end
D["drm_dev_register(drm_dev)"]
E["kirin_drm_connectors_register(drm_dev)"]
end
N31["display controller init"]
N6["reset all the states of crtc/plane/encoder/connector"]
N8["init kms poll for handling hotplug"]
N9["force detection after connectors init"]
C31 -.-> N31
C6 -.-> N6
C8 -.-> N8
C9 -.-> N9
A --> B --> C1 --> C2 --> C3 --> C31 --> C4 --> C5 --> C6 --> C7 --> C8 --> C9 --> D --> Edw-dsi DesignWare MIPI DSI Host Controller Driverflowchart TB
subgraph "dsi_probe()@platform_driver.probe"
direction TB
A["devm_kzalloc()"]
subgraph "dsi_parse_endpoint(dw_dsi, np, OUT_HDMI)"
subgraph "for_each_endpoint_of_node()"
subgraph "dsi_parse_bridge_endpoint(dsi, ep_node)"
B1["of_graph_get_remote_port_parent()"]
B2["of_drm_find_bridge()"]
end
end
end
C["dsi_host_init(dev, dw_dsi)"]
D["dsi_parse_endpoint(dw_dsi, np, OUT_PANEL)"]
E["dsi_parse_dt(plat_dev, dw_dsi)"]
F["platform_set_drvdata()"]
G["component_add(dev, &dsi_ops)"]
end
N2["if bridge return NULL,<br/>then return -EPROBE_DEFER"]
A --> B1 --> B2 --> C --> D --> E --> F --> G
B2 -.-> N2DSI bridge driver probe 陷入死循环
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 [ 3.270639] [drm] the bridge node is adv7533 [ 3.270645] [drm] wait for external HDMI bridge driver. [ 3.270832] of_irq_parse_raw: /soc/gpio@e8a0c000:00000001,00000002 [ 3.270905] adv7511_probe dev->of_node (____ptrval____) [ 3.270909] __devm_drm_bridge_alloc [ 3.271426] adv7511_init_regulators [ 3.330257] [drm] the bridge node is adv7533 [ 3.330264] [drm] wait for external HDMI bridge driver. [ 3.330449] of_irq_parse_raw: /soc/gpio@e8a0c000:00000001,00000002 [ 3.330522] adv7511_probe dev->of_node (____ptrval____) [ 3.330526] __devm_drm_bridge_alloc [ 3.331015] adv7511_init_regulators [ 3.390209] [drm] the bridge node is adv7533 [ 3.390215] [drm] wait for external HDMI bridge driver. [ 3.390397] of_irq_parse_raw: /soc/gpio@e8a0c000:00000001,00000002 [ 3.390464] adv7511_probe dev->of_node (____ptrval____) [ 3.390468] __devm_drm_bridge_alloc [ 3.390937] adv7511_init_regulators [ 3.446194] [drm] the bridge node is adv7533 [ 3.446200] [drm] wait for external HDMI bridge driver.
按照上游对 hisilicon/kirin/dw_drm_dsi.c 的修改 ，将 hikey9xx/gpu/kirin9xx_dw_drm_dsi.c 中的 dsi_probe() 在 probe ordering 调整后可解决此问题
kirin9xx-dw-dsi MIPI DSI Host Controller Driverflowchart TB
subgraph "dsi_probe()@platform_driver.probe"
direction TB
A["devm_kzalloc()"]
subgraph "dsi_parse_endpoint(dw_dsi, np, OUT_HDMI)"
subgraph "dsi_parse_bridge_endpoint(dsi, ep_node)"
B["of_graph_get_remote_port_parent(ep_node)"]
B_["of_drm_find_bridge(bridge_node)"]
end
end
subgraph "dsi_host_init(dev, dw_dsi)"
B1["mipi_dsi_host_register(dw_dsi::mipi_dsi_host::ops)"]
end
C["dsi_parse_endpoint(dw_dsi, np, OUT_PANEL)"]
D["dsi_parse_dt(plat_dev, dw_dsi)"]
E["platform_set_drvdata()"]
subgraph "dsi_host_init(dev, dw_dsi)"
F1["mipi_dsi_host_register(dw_dsi::mipi_dsi_host::ops)"]
end
subgraph "dsi_host_attach()@mipi_dsi_host_ops.attach"
G1["component_add(dev, &dsi_ops)"]
end
subgraph "dsi_bind()@component_ops.bind"
subgraph "dw_drm_encoder_init(dev, drm_dev, &dsi->encoder)"
direction TB
H11["drm_of_find_possible_crtcs(drm_dev, dev->of_node)"]
H12["drm_encoder_init(drm_dev, encoder, &dw_encoder_funcs,<br/>DRM_MODE_ENCODER_DSI, NULL)"]
H13["drm_encoder_helper_add(encoder, &dw_encoder_helper_funcs)"]
H14["drm_of_find_panel_or_bridge(np, 1, 0, NULL, &bridge)"]
H15["drm_bridge_attach(encoder, bridge, NULL, 0)"]
end
end
style B fill: #f5f5f5, stroke-dasharray: 5,5
style B_ fill: #f5f5f5, stroke-dasharray: 5,5
style B1 fill: #f5f5f5, stroke-dasharray: 5,5
end
A --> B --> B_ --> B1 --> C --> D --> E --> F1 --> G1 --> H11 --> H12 --> H13 --> H14 --> H15
B1 --> F1

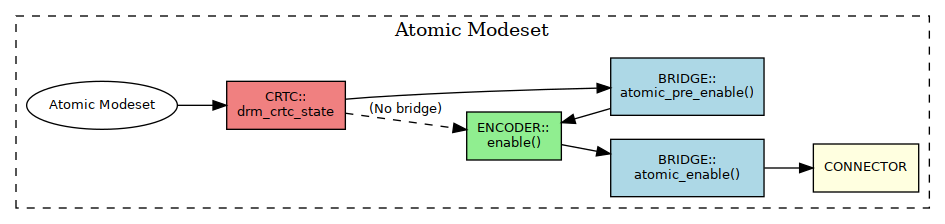

B_ --> H14adv7511 ADV7535 Bridge Driver1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 [ 2.363067] [drm] Initialized kirin9xx 1.0.0 for e8600000.dpe on minor 0 [ 2.363085] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [ 2.363091] [drm:drm_mode_object_get] OBJ ID: 37 (2) [ 2.363097] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:37:HDMI-A-1] [ 2.567054] [drm] Valid mode: 640x480@60, clock 25175 (adjusted to 25175) [ 2.567079] [drm] Valid mode: 800x600@56, clock 36000 (adjusted to 36000) [ 2.567100] [drm] Valid mode: 800x600@60, clock 40000 (adjusted to 40000) [ 2.567119] [drm] Valid mode: 848x480@60, clock 33750 (adjusted to 33750) [ 2.567137] [drm] Valid mode: 1024x768@60, clock 65000 (adjusted to 65000) [ 2.567144] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:37:HDMI-A-1] probed modes: [ 2.567151] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1024x768": 60 65000 1024 1048 1184 1344 768 771 777 806 0x40 0xa [ 2.567158] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "800x600": 60 40000 800 840 968 1056 600 601 605 628 0x40 0x5 [ 2.567165] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "800x600": 56 36000 800 824 896 1024 600 601 603 625 0x40 0x5 [ 2.567171] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "848x480": 60 33750 848 864 976 1088 480 486 494 517 0x40 0x5 [ 2.567177] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "640x480": 60 25175 640 656 752 800 480 490 492 525 0x40 0xa [ 2.567183] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [CONNECTOR:37:HDMI-A-1] enabled? yes [ 2.567192] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] Not using firmware configuration [ 2.567200] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [CONNECTOR:37:HDMI-A-1] found first mode: 1024x768 [ 2.567206] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] picking CRTCs for 2048x2048 config [ 2.567214] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [CRTC:35:crtc-0] desired mode 1024x768 set (0,0) [ 2.567219] [drm:drm_mode_object_get] OBJ ID: 37 (2) [ 2.567223] [drm:drm_mode_object_put.part.0] OBJ ID: 37 (3) [ 2.567231] kirin9xx-drm e8600000.dpe: [drm:__drm_fb_helper_initial_config_and_unlock] test CRTC 0 primary plane [ 2.567240] kirin9xx-drm e8600000.dpe: [drm:drm_fbdev_dma_driver_fbdev_probe] surface width(1024), height(768) and bpp(32) [ 2.574254] kirin9xx-drm e8600000.dpe: [drm:drm_mode_addfb2] [FB:39] [ 2.574260] [drm:drm_mode_object_put.part.0] OBJ ID: 39 (2) [ 2.574337] kirin9xx-drm e8600000.dpe: [drm] fb0: kirin9xxdrmfb frame buffer device [ 2.574341] [drm] Initialized kirin9xx 1.0.0 on minor 0 [ 2.574344] [drm] host attach, client name=[adv7533], id=0 [ 2.574347] adv7511 0-0039: adv7511_probe attach dsi ok [ 2.574350] adv7511 0-0039: adv7511_probe ok
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 [ 2.204280] [drm] luc Initialized kirin9xx 1.0.0 on minor 0 [ 2.204471] [drm] dss irq = 51. [ 2.204475] kirin9xx-drm e8600000.dpe: Looking up ldo3-supply from device node /dpe@e8600000 [ 2.204576] [drm] dsi_bind [ 2.204578] kirin9xx-dw-dsi e8601000.dsi: dw_drm_encoder_init: [ 2.204586] kirin9xx-dw-dsi e8601000.dsi: Initializing CRTC encoder: 1 [ 2.224171] kirin9xx-drm e8600000.dpe: bound e8601000.dsi (ops dsi_ops) [ 2.267712] dwmmc_k3 ff37f000.dwmmc1: tuning ok best_clksmpl 11 tuning_sample_flag bff7fff7 [ 2.267729] mmc0: new UHS-I speed SDR104 SDHC card at address aaaa [ 2.268024] mmcblk0: mmc0:aaaa SC16G 14.8 GiB [ 2.282367] mmcblk0: p1 p2 [ 2.446942] kirin9xx-drm e8600000.dpe: [drm:check_connector_changed] [CONNECTOR:37:HDMI-A-1] status updated from unknown to connected [ 2.446962] kirin9xx-drm e8600000.dpe: [drm:check_connector_changed] [CONNECTOR:37:HDMI-A-1] Changed epoch counter 0 => 1 [ 2.446969] [drm:drm_mode_object_get] OBJ ID: 37 (2) [ 2.446978] kirin9xx-drm e8600000.dpe: [drm:drm_sysfs_connector_hotplug_event] [CONNECTOR:37:HDMI-A-1] generating connector hotplug event [ 2.446994] [drm:drm_mode_object_put.part.0] OBJ ID: 37 (2) [ 2.446999] [drm] kirin_drm_kms_init ok [ 2.447023] [drm:drm_minor_register] [ 2.447107] [drm:drm_minor_register] new minor registered 128 [ 2.447111] [drm:drm_minor_register] [ 2.447155] [drm:drm_minor_register] new minor registered 0 [ 2.447159] [drm:drm_minor_register] [ 2.447182] kirin9xx-drm e8600000.dpe: [drm:drm_sysfs_connector_add] [CONNECTOR:37:HDMI-A-1] adding connector to sysfs [ 2.447246] kirin9xx-drm e8600000.dpe: [drm:drm_sysfs_connector_hotplug_event] [CONNECTOR:37:HDMI-A-1] generating connector hotplug event [ 2.458988] [drm] Initialized kirin9xx 1.0.0 for e8600000.dpe on minor 0 [ 2.459005] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [ 2.459013] [drm:drm_mode_object_get] OBJ ID: 37 (2) [ 2.459018] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:37:HDMI-A-1] [ 2.577598] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] CEA VCDB 0xd5 [ 2.577609] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] HDMI: DVI dual 0, max TMDS clock 360000 kHz [ 2.577617] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] HDMI sink does deep color 30. [ 2.577622] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] Assigning HDMI sink color depth as 10 bpc. [ 2.577629] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] HDMI sink does YCRCB444 in deep color. [ 2.577633] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] HDMI sink should do DC_36, but does not! [ 2.577641] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] ELD monitor Sculptor [ 2.577646] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] HDMI: latency present 0 0, video latency 0 0, audio latency 0 0 [ 2.577652] kirin9xx-drm e8600000.dpe: [drm:update_display_info.part.0] [CONNECTOR:37:HDMI-A-1] ELD size 32, SAD count 1 [ 2.577792] [drm] Valid mode: 1920x1080@60, clock 148500 (adjusted to 144000) [ 2.577812] [drm] Valid mode: 1920x1080@50, clock 117000 (adjusted to 117000) [ 2.577830] [drm] Valid mode: 1152x864@60, clock 81579 (adjusted to 81579) [ 2.577833] [drm] Valid mode: 1280x720@60, clock 74250 (adjusted to 72000) [ 2.577852] [drm] Valid mode: 1280x1024@60, clock 108000 (adjusted to 108000) [ 2.577870] [drm] Valid mode: 1600x900@60, clock 108000 (adjusted to 108000) [ 2.577888] [drm] Valid mode: 800x600@60, clock 40000 (adjusted to 40000) [ 2.577906] [drm] Valid mode: 1024x768@60, clock 65000 (adjusted to 65000) [ 2.577910] [drm] Valid mode: 1920x1080@60, clock 148500 (adjusted to 144000) [ 2.577915] [drm] Valid mode: 1280x720@50, clock 74250 (adjusted to 72000) [ 2.577917] [drm] Valid mode: 1280x720@60, clock 74250 (adjusted to 72000) [ 2.577922] [drm] Valid mode: 1920x1080@50, clock 148500 (adjusted to 144000) [ 2.577925] [drm] Valid mode: 1280x720@60, clock 74176 (adjusted to 74176) [ 2.577929] [drm] Valid mode: 1920x1080@60, clock 148352 (adjusted to 148352) [ 2.577935] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] [CONNECTOR:37:HDMI-A-1] probed modes: [ 2.577942] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1920x1080": 60 148500 1920 2008 2052 2200 1080 1082 1087 1125 0x48 0x5 [ 2.577948] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1920x1080": 60 148500 1920 2008 2052 2200 1080 1084 1089 1125 0x40 0x5 [ 2.577955] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1920x1080": 60 148352 1920 2008 2052 2200 1080 1084 1089 1125 0x40 0x5 [ 2.577961] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1920x1080": 50 148500 1920 2448 2492 2640 1080 1084 1089 1125 0x40 0x5 [ 2.577967] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1920x1080": 50 117000 1920 2008 2052 2080 1080 1084 1089 1125 0x40 0x5 [ 2.577973] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1600x900": 60 108000 1600 1624 1704 1800 900 901 904 1000 0x40 0x5 [ 2.577979] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1280x1024": 60 108000 1280 1328 1440 1688 1024 1025 1028 1066 0x40 0x5 [ 2.577984] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1152x864": 60 81579 1152 1216 1336 1520 864 865 868 895 0x0 0x6 [ 2.577990] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1280x720": 60 74250 1280 1390 1430 1650 720 725 730 750 0x40 0x5 [ 2.577996] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1280x720": 60 74250 1280 1390 1430 1650 720 725 730 750 0x40 0x5 [ 2.578002] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1280x720": 60 74176 1280 1390 1430 1650 720 725 730 750 0x40 0x5 [ 2.578007] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1280x720": 50 74250 1280 1720 1760 1980 720 725 730 750 0x40 0x5 [ 2.578013] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "1024x768": 60 65000 1024 1048 1184 1344 768 771 777 806 0x40 0xa [ 2.578018] kirin9xx-drm e8600000.dpe: [drm:drm_helper_probe_single_connector_modes] Probed mode: "800x600": 60 40000 800 840 968 1056 600 601 605 628 0x40 0x5 [ 2.578025] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [CONNECTOR:37:HDMI-A-1] enabled? yes [ 2.578034] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] Not using firmware configuration [ 2.578041] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [CONNECTOR:37:HDMI-A-1] found preferred mode: 1920x1080 [ 2.578047] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] picking CRTCs for 2048x2048 config [ 2.578054] kirin9xx-drm e8600000.dpe: [drm:drm_client_modeset_probe] [CRTC:35:crtc-0] desired mode 1920x1080 set (0,0) [ 2.578059] [drm:drm_mode_object_get] OBJ ID: 37 (2) [ 2.578063] [drm:drm_mode_object_put.part.0] OBJ ID: 37 (3) [ 2.578070] kirin9xx-drm e8600000.dpe: [drm:__drm_fb_helper_initial_config_and_unlock] test CRTC 0 primary plane [ 2.578078] kirin9xx-drm e8600000.dpe: [drm:drm_fbdev_dma_driver_fbdev_probe] surface width(1920), height(1080) and bpp(32) [ 2.588560] kirin9xx-drm e8600000.dpe: [drm:drm_mode_addfb2] [FB:40] [ 2.588566] [drm:drm_mode_object_put.part.0] OBJ ID: 40 (2) [ 2.588646] kirin9xx-drm e8600000.dpe: [drm] fb0: kirin9xxdrmfb frame buffer device [ 2.588649] [drm] Initialized kirin9xx 1.0.0 on minor 0 [ 2.588653] [drm] host attach, client name=[adv7533], id=0
fbdev vs drm_client kernel command line 选项 drm_client_lib.active=fbdev 可以覆盖内核配置项 CONFIG_DRM_CLIENT_DEFAULT
panfrost GPU DriverPathor(C) 和 Tyr(Rust) 都是为 Valhall 架构以上的 Mali GPU (即基于 Command Stream Frontend 的 GPU) 而写的驱动, HiKey 970 (HI3670 SoC) 搭载的是 Mali G72 MP12 (Bifrost)，所以只能使用 Panfrost 驱动。上面可以启动的内核是 v4.19, 当时的 GPU 驱动还是 lima.
HiKey 970 开发板对应的 devicetree 源文件 hi3670-hikey970.dts ， 在 v4.19 时也合入了主线。
commit 5510ee99c0deb0c0235acee6498a6745c8317df1mani@kernel.org xuwei5@hisilicon.com
arm64: dts: Add devicetree support for HiKey970 board
Add devicetree support for HiKey970 development board which
based on Hi3670 SoC and is also one of the 96Boards Consumer
Edition and AI platform.
Only UART6 is enabled which is the default console required
by the 96Boards Consumer Edition Specification.
This patch has been tested on HiKey970 Board.
Signed-off-by: Manivannan Sadhasivam <manivannan.sadhasivam@linaro.org>
Signed-off-by: Wei Xu <xuwei5@hisilicon.com>
arch/arm64/boot/dts/hisilicon/hi3670-hikey970.dts | 35 +++++++++++++++++++++++++++++++++++

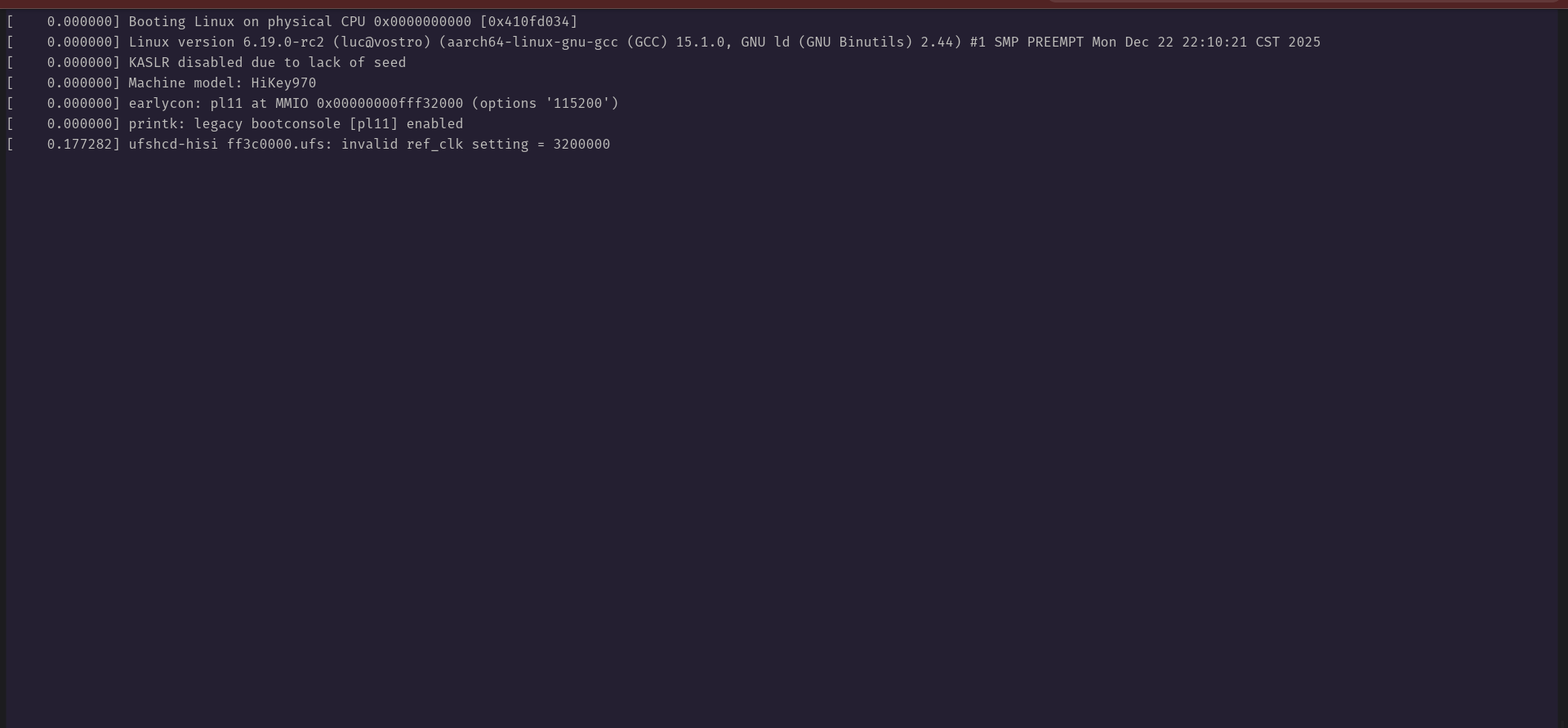

v6.19 到目前为止，使用 @mengzhuo/hikey970-ubuntu-image 可以正常启动 HiKey970，而且安装了 Xfce，所以我 fork 了这个仓库，将其更名为 hikey970-debian-image ，将基于 Ubuntu bionic (18.04 LTS) 的 rootfs.img 移植到基于 Debian bookworm (12) 的 rootfs.img，并成功启动。之后准备将这块 2018 年 3 月发布的板子作为学习和测试内核最新驱动的平台，所以现在就看看主线编译的设备树 (arch/arm64/boot/dts/hisilicon/hi3670-hikey970.dtb) 和内核 (arch/arm64/boot/Image.gz) 是否能正常启动。
kernel + dtb
kernel only
random: crng init done took 70 minutes1 2 3 4 5 6 7 8 9 10 11 12 [ 5.201987] random: perl: uninitialized urandom read (4 bytes read) [ 5.202263] random: perl: uninitialized urandom read (4 bytes read) [FAILED] Failed to start systemd-ra…rvice - Load/Save Random Seed. See 'systemctl status systemd-random-seed.service' for details. Starting systemd-tmpfiles-…leanup of Temporary Directories... [ OK ] Finished systemd-tmpfiles-… Cleanup of Temporary Directories. Starting dpkg-db-backup.se…ly dpkg database backup service... Starting logrotate.service - Rotate log files... [ OK ] Finished dpkg-db-backup.se…aily dpkg database backup service. [ OK ] Finished logrotate.service - Rotate log files. [ 4396.712657] random: crng init done [ 4396.712674] random: 4 urandom warning(s) missed due to ratelimiting
crng init 花这么长时间的原因是系统 entropy sources 不足，内核一直在填充 entropy pool, 这种情况只发生在刷写系统后第一次启动，之后 entropy pool 应该固化在 UFS 存储里了，启动时间就正常了。但因为需要频繁刷写系统，所以还是得解决这个问题。尝试了 rng-tools5 和 haveged 后，发现 haveged 可以解决这个问题。理论上 rng-tools5/rng-tools 也可以借助 /dev/hwrng 解决这个问题，但不知为何 rngd 服务始终不能正常工作 ，怀疑可能是 Hi3670 SoC 的 TRNG 驱动有问题。
SD 卡不识别 现象：系统启动后 lsblk 看不到 /dev/mmcblk0
使用原来的 hikey970-ubuntu-image (@mengzhuo) 镜像，SD 卡是正常识别的，这就说明电源和卡本身没有问题(之前因为使用 12V 的电源, fastboot flash 总是失败的教训很深刻🐶)。
将下来主要排查设备树和内核配置的问题，在这里和 ChatGPT/DeepSeek 交流了很多，总体感觉 ChatGPT 在这方面比 DeepSeek 靠谱一点。了解到了 HI3670 SoC 的 MMC 控制器使用的是 Synopsis DesignWare MMC, 它是一种不遵循 SD Host Controller Interface 规范的厂家自定义接口。

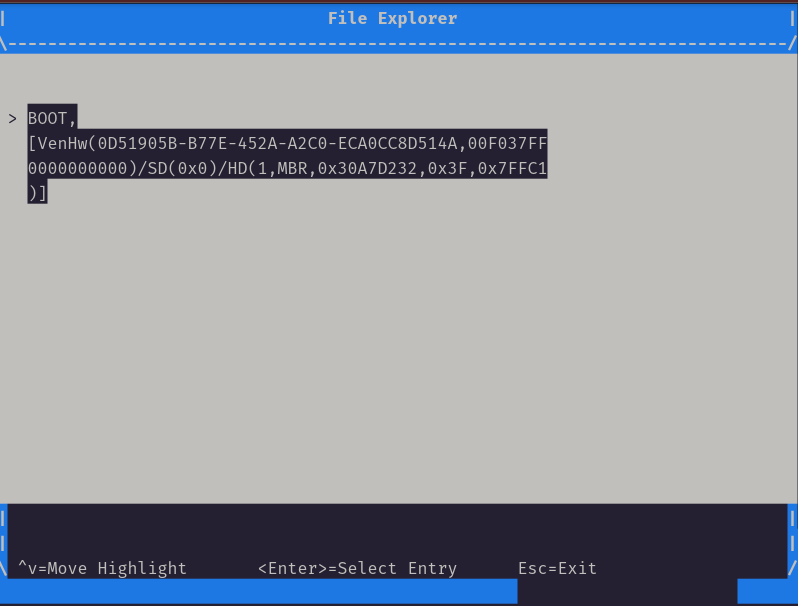

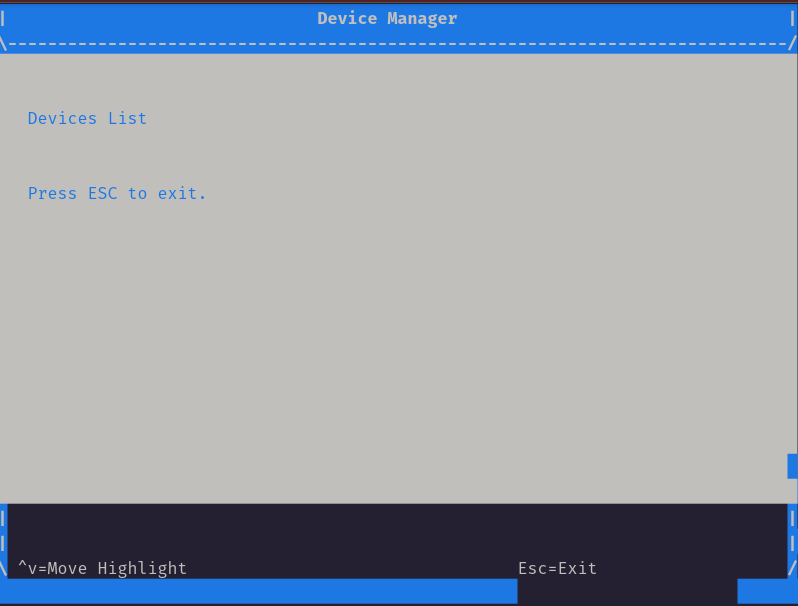

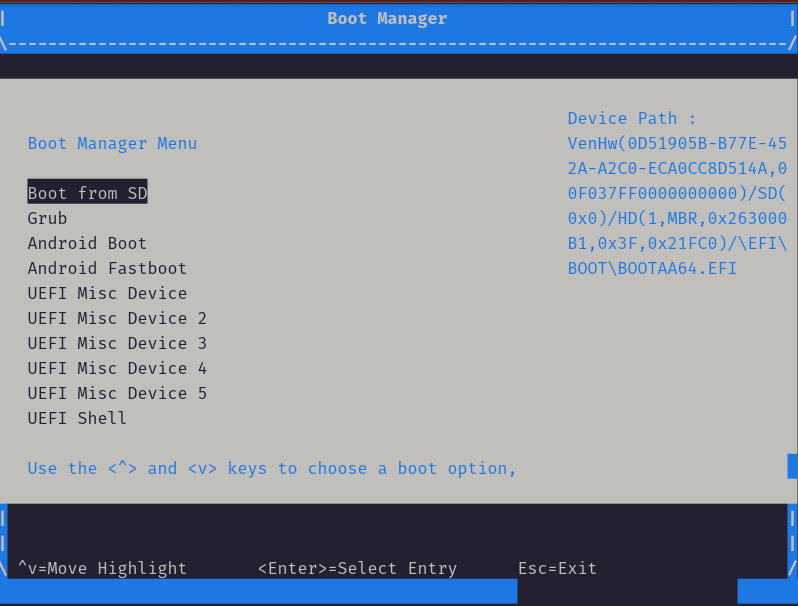

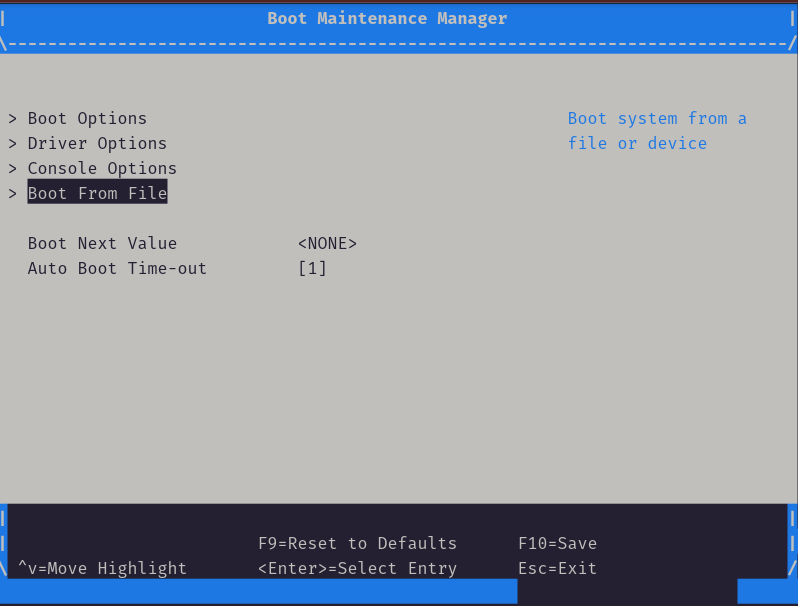

SD 卡启动 SD 卡启动有两个主要问题:
参考
