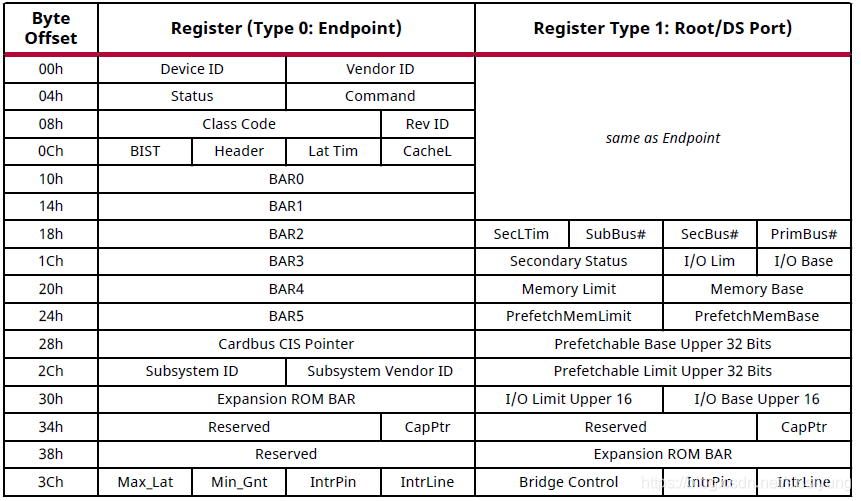

PCIe Type 0 (Non-Bridge) Configuration Space Header

PCI config space (256 Bytes per Device)

PCI config space 本质上是 64 个 32-bit 寄存器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
pci 0000:00:00.0: config space:
00000000: 86 80 34 3e
00000004: 06 00 90 20
00000008: 0c 00 00 06
0000000c: 00 00 00 00
00000010: 00 00 00 00 <- BAR0
00000014: 00 00 00 00 <- BAR1
00000018: 00 00 00 00 <- BAR2
0000001c: 00 00 00 00 <- BAR3
00000020: 00 00 00 00 <- BAR4
00000024: 00 00 00 00 <- BAR5
00000028: 00 00 00 00
0000002c: 28 10 20 09
00000030: 00 00 00 00
00000034: e0 00 00 00
00000038: 00 00 00 00
0000003c: 00 00 00 00
00000040: 01 90 d1 fe
00000044: 00 00 00 00
00000048: 01 00 d1 fe
0000004c: 00 00 00 00
00000050: c1 02 00 00
00000054: b1 80 00 00
00000058: 47 00 70 8f
0000005c: 07 01 00 8a
00000060: 01 00 00 e0
00000064: 00 00 00 00
00000068: 01 80 d1 fe
0000006c: 00 00 00 00
00000070: 00 00 00 fc
00000074: 01 00 00 00
00000078: 00 0c 00 fc
0000007c: 7f 00 00 00
00000080: 01 00 00 00
00000084: 00 00 00 00
00000088: 1a 00 00 00
0000008c: 00 00 00 00
00000090: 01 00 00 fc
00000094: 01 00 00 00
00000098: 01 00 70 6c
0000009c: 02 00 00 00
000000a0: 01 00 00 00
000000a4: 02 00 00 00
000000a8: 01 00 80 6c
000000ac: 02 00 00 00
000000b0: 01 00 80 8b
000000b4: 01 00 00 8b
000000b8: 01 00 00 8a
000000bc: 01 00 80 8f
000000c0: 00 00 00 00
000000c4: 00 00 00 00
000000c8: 00 00 00 00
000000cc: 00 00 00 00
000000d0: 00 00 00 00
000000d4: 00 00 00 00
000000d8: 00 00 00 00
000000dc: 00 00 00 00
000000e0: 09 00 10 01
000000e4: c1 60 61 7a
000000e8: 8c 80 11 94
000000ec: 00 c0 04 00
000000f0: 00 00 00 00
000000f4: c8 0f 0c 00
000000f8: 00 00 00 00
000000fc: 00 00 00 00
pci 0000:00:00.0: [8086:3e34] type 00 class 0x060000 conventional PCI endpoint
pci 0000:00:02.0: config space:
00000000: 86 80 a0 3e
00000004: 07 00 10 00
00000008: 02 00 00 03
0000000c: 00 00 00 00
00000010: 04 00 00 c0 <- BAR 0 * (type=mem)
00000014: 00 00 00 00 <- BAR 1
00000018: 0c 00 00 b0 <- BAR 2 * (type=mem)
0000001c: 00 00 00 00 <- BAR 3
00000020: 01 40 00 00 <- BAR 4 * (type=io)
00000024: 00 00 00 00 <- BAR 5
00000028: 00 00 00 00
0000002c: 28 10 20 09
00000030: 00 00 00 00
00000034: 40 00 00 00 <- Capability Pointer : 40h
00000038: 00 00 00 00
0000003c: ff 01 00 00
00000040: 09 70 0c 01 <- Capability Next : 70h, ID: 09h (Vendor Specific)
00000044: c1 60 61 7a
00000048: 8c 80 11 94
0000004c: 00 00 00 00
00000050: c1 02 00 00
00000054: b1 80 00 00
00000058: 00 00 00 00
0000005c: 01 00 80 8b
00000060: 00 00 01 00
00000064: 00 00 00 00
00000068: 00 00 00 00
0000006c: 00 00 00 00
00000070: 10 ac 92 00 <- Capability Next : ach, ID: 10h (PCI Express)
00000074: 00 80 00 10
00000078: 00 00 00 00
0000007c: 00 00 00 00
00000080: 00 00 00 00
00000084: 00 00 00 00
00000088: 00 00 00 00
0000008c: 00 00 00 00
00000090: 00 00 00 00
00000094: 00 00 00 00
00000098: 00 00 00 00
0000009c: 00 00 00 00
000000a0: 00 00 00 00
000000a4: 00 00 00 00
000000a8: 00 00 00 00
000000ac: 05 d0 00 00 <- Capability Next : d0h, ID: 05h (Message Signaled Interrupts)
000000b0: 00 00 00 00
000000b4: 00 00 00 00
000000b8: 00 00 00 00
000000bc: 00 00 00 00
000000c0: 00 00 00 00
000000c4: 00 00 00 00
000000c8: 00 00 00 00
000000cc: 00 00 00 00
000000d0: 01 00 22 00 <- Capability Last : 00h, ID: 01h (PCI Power Management Interface)
000000d4: 00 00 00 00
000000d8: 00 00 00 00
000000dc: 00 00 00 00
000000e0: 00 00 00 00
000000e4: 00 00 00 00
000000e8: 00 80 00 00
000000ec: 00 00 00 00
000000f0: 00 00 00 00
000000f4: 00 00 00 00
000000f8: 00 00 00 00
000000fc: 18 00 e1 88
pci 0000:00:02.0: [8086:3ea0] type 00 class 0x030000 PCIe Root Complex Integrated Endpoint
pci 0000:00:02.0: BAR 0 [mem 0xc0000000-0xc0ffffff 64bit] <- FB (mmapped Write-Combining)
pci 0000:00:02.0: BAR 2 [mem 0xb0000000-0xbfffffff 64bit pref] <- (mapped Write-Through)
pci 0000:00:02.0: BAR 4 [io  0x4000-0x403f]
pci 0000:00:02.0: Video device with shadowed ROM at [mem 0x000c0000-0x000dffff]
...
pci 0000:01:00.0: config space:
00000000: de 10 13 1d
00000004: 00 00 10 00
00000008: a1 00 02 03
0000000c: 00 00 00 00
00000010: 00 00 00 c1 <- BAR 0 * (type=mem)
00000014: 0c 00 00 90 <- BAR 1 * (type=mem)
00000018: 00 00 00 00 <- BAR 2
0000001c: 0c 00 00 a0 <- BAR 3 * (type=mem)
00000020: 00 00 00 00 <- BAR 4
00000024: 01 30 00 00 <- BAR 5 * (type=io)
00000028: 00 00 00 00
0000002c: 28 10 20 09
00000030: 00 00 f8 ff
00000034: 60 00 00 00 <- Capability Pointer : 60h
00000038: 00 00 00 00
0000003c: ff 01 00 00
00000040: 28 10 20 09
00000044: 00 00 00 00
00000048: 00 00 00 00
0000004c: 00 00 00 00
00000050: 00 00 00 00
00000054: 01 00 00 00
00000058: ce d6 23 00
0000005c: 00 00 00 00
00000060: 01 68 03 00 <- Capability Next : 68h, ID: 01h (PCI Power Management Interface)
00000064: 08 00 00 00
00000068: 05 78 80 00 <- Capability Next : 78h, ID: 05h (Message Signaled Interrupts)
0000006c: 00 00 00 00
00000070: 00 00 00 00
00000074: 00 00 00 00
00000078: 10 00 02 00 <- Capability Last : 00h, ID: 10h (PCI Express)
0000007c: e1 8d e8 07
00000080: 30 29 09 00
00000084: 43 4c 45 00
00000088: 42 01 43 10
0000008c: 00 00 00 00
00000090: 00 00 00 00
00000094: 00 00 00 00
00000098: 00 00 00 00
0000009c: 13 08 04 00
000000a0: 00 00 00 00
000000a4: 0e 00 00 00
000000a8: 03 00 1e 00
000000ac: 00 00 00 00
000000b0: 00 00 00 00
000000b4: 09 00 14 01
000000b8: 00 00 00 00
000000bc: 00 00 00 00
000000c0: 00 00 00 00
000000c4: 00 00 00 00
000000c8: 00 00 00 00
000000cc: 00 00 00 00
000000d0: 00 00 00 00
000000d4: 00 00 00 00
000000d8: 00 00 00 00
000000dc: 00 00 00 00
000000e0: 00 00 00 00
000000e4: 00 00 00 00
000000e8: 00 00 00 00
000000ec: 00 00 00 00
000000f0: 00 00 00 00
000000f4: 00 00 00 00
000000f8: 00 00 00 00
000000fc: 00 00 00 00
pci 0000:01:00.0: [10de:1d13] type 00 class 0x030200 PCIe Endpoint
pci 0000:01:00.0: BAR 0 [mem 0xc1000000-0xc1ffffff]
pci 0000:01:00.0: BAR 1 [mem 0x90000000-0x9fffffff 64bit pref]
pci 0000:01:00.0: BAR 3 [mem 0xa0000000-0xa1ffffff 64bit pref]
pci 0000:01:00.0: BAR 5 [io  0x3000-0x307f]
pci 0000:01:00.0: ROM [mem 0xfff80000-0xffffffff pref]

上面的 PCI config space dump 可以通过内核启动参数 pci=earlydump 开启打印。所谓 earlydump 是指打印的是内核未经修改的 config space, 也就是说是 UEFI 初始化过的 config space, 像 BAR 里的物理地址一般不会是这个设备最终的物理内存起始地址，内核一般都会重新规划 PCI 设备的物理内存地址空间，由内核重新填入的 BAR 值，可以通过

1
lspci -vvv -s <Bus:Dev.Func>

或

1
lspci -xxx -s <Bus:Dev.Func>

来查看。

Access to config space

内核访问 PCI config space 的 API 都定义在 drivers/pci/access.c 中

1
int pci_read_config_byte(const struct pci_dev *dev, int where, u8 *val);

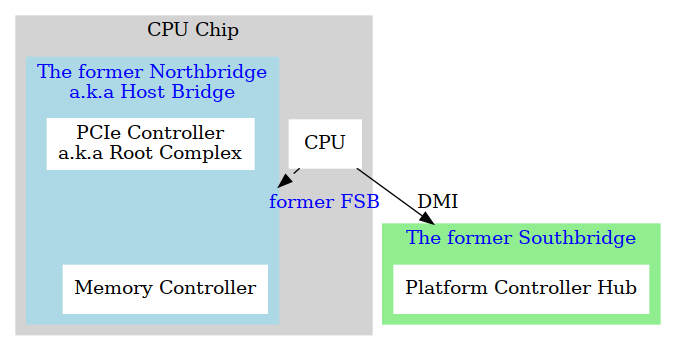

消失的南桥和北桥
